plugin_src/operator/fast_conv_time_space.c File Reference

#include <complex.h>
#include <fftw3.h>
#include "crusde_api.h"
#include <stdarg.h>
#include <stdio.h>
#include <time.h>
#include <math.h>

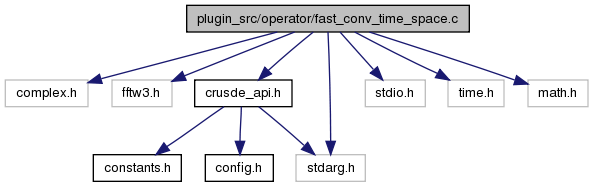

Include dependency graph for fast_conv_time_space.c:

Defines
#define	RESET(x, y) (x = y = -1)
#define	POSITION(m, n) (n+(N_Y)*m)
Functions
void	register_output_fields ()
void	register_parameter ()
	Register parameters this Kernel claims from the input.
void	request_plugins ()
void	init ()
	Initialization of the convolution. Allocation of memory for inputs and outputs.
void	clear ()
void	run ()
	Performs the fast convolution.
const char *	get_name ()
const char *	get_version ()
const char *	get_authors ()
const char *	get_description ()
PluginCategory	get_category ()
Variables
double *	decay_in
double *	history_in
double *	conv_out
double **	spatial_result
fftw_complex *	decay_out
fftw_complex *	history_out
fftw_complex *	conv_in
fftw_plan	decay_plan
fftw_plan	history_plan
fftw_plan	conv_plan
double **	result
int	N_T
int	size_T = 0
int	size_X = 0
int	size_Y = 0
int	x = -1
int	y = -1
int	i = 0
int	n = -1
unsigned long int	t = 0
int	dimensions = 1
int	displacement_dimensions = 1
boolean	is_initialized = false
void(*	fast_spatial_conv )() = NULL

Detailed Description

Implements a fast convolution using the Fast Fourier Transform (DFT). This Plugin depends on the FFTW3 library, http://www.fftw3.org , which is used to allow convolution in the spectral domain (see convolution theorem).

Define Documentation

#define POSITION	(	m,
		n		)	(n+(N_Y)*m)

#define RESET	(	x,
		y		)	(x = y = -1)

Function Documentation

void clear ( )

Frees memory allocated during init(). FFTW plans are destroyed.

References conv_in, conv_out, conv_plan, decay_in, decay_out, decay_plan, dimensions, history_in, history_out, history_plan, is_initialized, n, and result.

const char* get_authors ( )

PluginCategory get_category ( )

References KERNEL_PLUGIN.

const char* get_description ( )

const char* get_name ( )

const char* get_version ( )

void init ( )

Initialization of the convolution. Allocation of memory for inputs and outputs.

The field sizes are adjusted according to the needs to avoid wrap around effects in the spectal domain and allow for effective use of DFT (lenght and width are a power of 2). Memory is allocated using fftw_malloc for DFT inputs and outputs (load_in, load_out, green_in, green_out, conv_in, conv_out). Three FFTW plans are created for DFT transform of Green and load arrays and IDFT of the convolution result back to original domain.

References conv_in, conv_out, conv_plan, crusde_get_dimensions(), crusde_get_displacement_dimensions(), crusde_get_size_x(), crusde_get_size_y(), crusde_get_timesteps(), decay_in, decay_out, decay_plan, dimensions, displacement_dimensions, history_in, history_out, history_plan, i, is_initialized, n, N_T, result, size_T, size_X, size_Y, and x.

void register_output_fields ( )

empty

void register_parameter ( )

Register parameters this Kernel claims from the input.

This plugin calls register_kernel_param() defined in crusde_api.h to register references to parameters this Kernel will need to operate properly. For command line use the order of registration in this function defines the identification of parameters in the command line string (i.e. './green -KfirstRegistered/secondRegistered/...'). In case an XML is used to configure the experiment, the reference to this parameter will be identified by the string passed as second argument to register_kernel_param().

This function registers the references in the following order:

Thus, the command line parameter string is: -K

See also:: register_kernel_param(); register_parameter() (temp_plugin.c.tmp)

void request_plugins ( )

we re-use spatial convolution!

References crusde_request_kernel_plugin(), and fast_spatial_conv.

void run ( )

Performs the fast convolution.

Requests values for each point in the examined area from Green's function (only once when modeltime == 0) and load function (every timestep). Does the origin shifting necessary for the Green's function values. The Green's function values are requested for each displacement direction the Green's function registered with the CrusDe.

FFTW plan is executed for the load. Then for each Green's function displacement direction the FFTW plan is executed, a complex multiplication of the DFT results performed and then for product the FFTW plan is executed (IDFT). The result of the convolution is extracted from the oversized IDFT result and cropped to the original size of the examined region.

ATTN: result[d][x] still holds the values from the last time run was called. This way adding up the results of multiple jobs is realized!

References conv_in, conv_out, conv_plan, crusde_crustal_decay_given(), crusde_debug(), crusde_get_crustal_decay_at(), crusde_get_load_history_at(), crusde_get_number_of_loads(), crusde_get_result(), crusde_load_history_given(), crusde_model_time(), crusde_set_current_load_component(), d, decay_in, decay_out, decay_plan, displacement_dimensions, fast_spatial_conv, history_in, history_out, history_plan, i, n, N_T, RESET, result, size_T, size_X, size_Y, spatial_result, t, x, and y.
